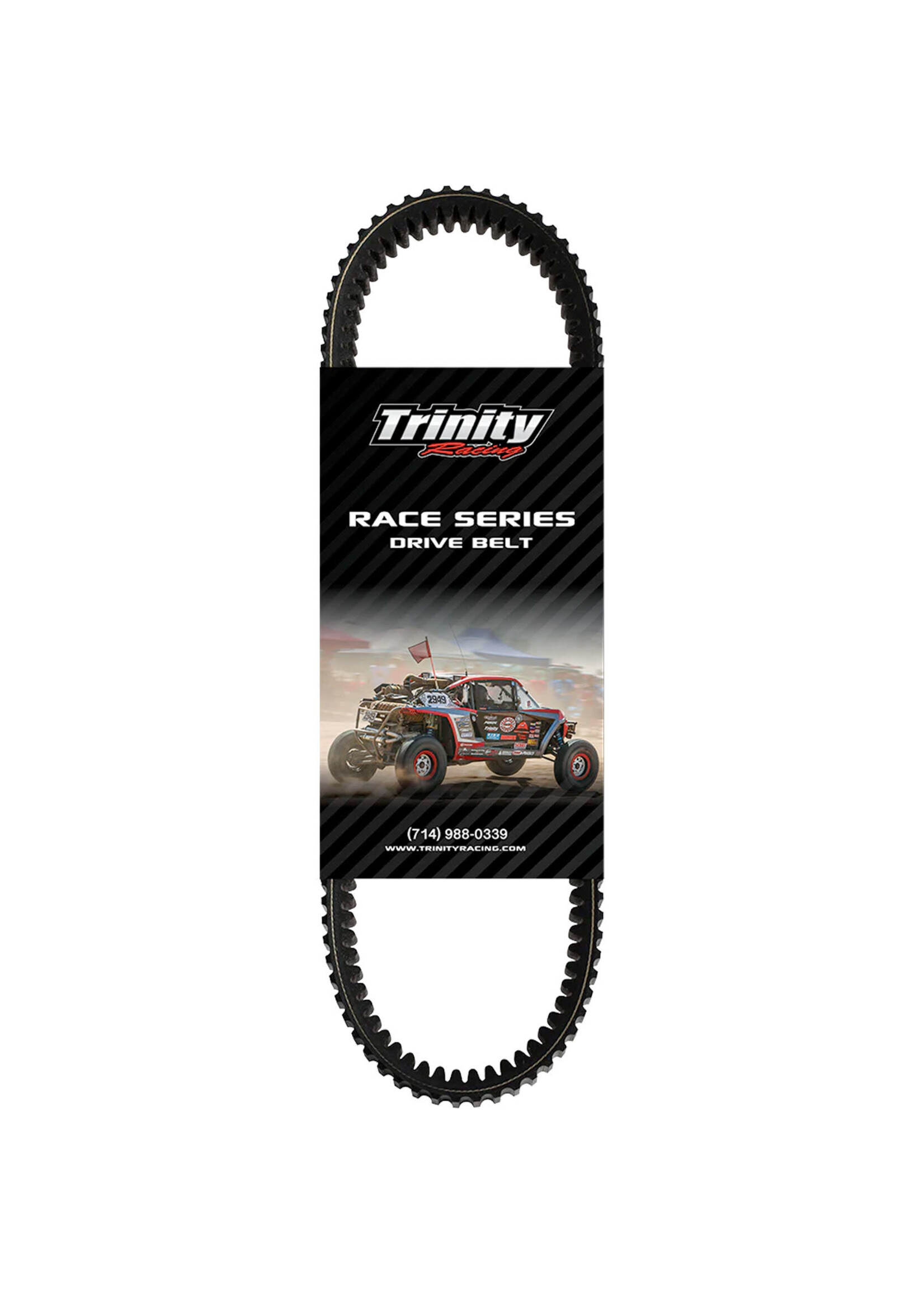

RACE SERIES BELT
- Built to decrease the chances of snapping or delamination in race applications when the tendency is to land on the throttle.
- Manufacturing, quality control certifications — ISO-14001, ISO-9001, and IATF-16949.
- Newly released design that has a larger Kevlar cord with a custom braid design to act as a shock absorber.
- New vulcanization process to marry the layers of the belt together around the cord preventing premature separation of the layers.
- Custom blend of two premium High Modulus Compounds holding the top layers together with the cord and bottom layers like super glue!
- Highest shock load rating to date being able to withstand the power of the 600hp machines.
- Increased top cog pressure load design that increases sidewall rigidity, prevents top cog bowing, but still allows for increased rotational flexibility.
- Bottom cog uses HIGH modulus rubber compound (BZX1) for better heat resistance and heat dissipation.
- Impregnated with short Aramid Fibers for better belt-to-sheave adhesion and reduced overall belt temperature.
- Latest bottom cog design for greater rotational efficiency at full shift.
- Precision ground sidewall angle (SCUFFING) for smooth engagement, increased power transfer and lower operating belt temperature.
- Kevlar cord, versus polyester, wraps over bottom cogs for increased bottom cog strength.
- Increased cord pop-out resistance.
OEM #3211202, 3211186
2016-2021 RZR XP Turbo
2016-2021 RZR XP Turbo 4
2018-2021 RZR XP Turbo S
2018-2021 RZR XP Turbo S 4
2018-2023 Ranger XP 1000
2019-2023 Ranger Crew XP 1000
